Explosion-proof Fire Fighting Robot with Ex db eb ib C T6 Gb Grade IP68 Protection and 1.98 m/s Travel Speed

محل منبع: چین نام تجاری: TOPSKY

اطلاعات تکمیلی

وزن موتور اصلی: 14 کیلوگرم میزان زنگ هشدار کاذب: 1 ٪
وزن بدن: 16 کیلوگرم فاصله کانونی لنز: f = 4.8mm ~ 94mm
جریان: 0.5 لیتر در دقیقه تنظیم عمودی: 0-30 سانتی متر
متناسب با محافظ: 600 متر در ثانیه نوع محصول: تجهیزات
پوشش سطح: الکتروفورتیک سرعت: 2 ثانیه
بیرون مواد پوشش: کوردورا 500D کشیدن فاصله: ≥120 متر (دو شلنگ غنی شده DN80 را بکشید)
Manipulator Max Grab: 10 کیلوگرم وزن مجموعه کامل: 3.42 کیلوگرم
قدرت: 1140 وات
برجسته کردن:

Ex db eb ib C T6 Gb Explosion-proof Robot,IP68 Protection Fire Fighting Robot,1.98 m/s Travel Speed Reconnaissance Robot

,

IP68 Protection Fire Fighting Robot

,

1.98 m/s Travel Speed Reconnaissance Robot

توضیحات محصول

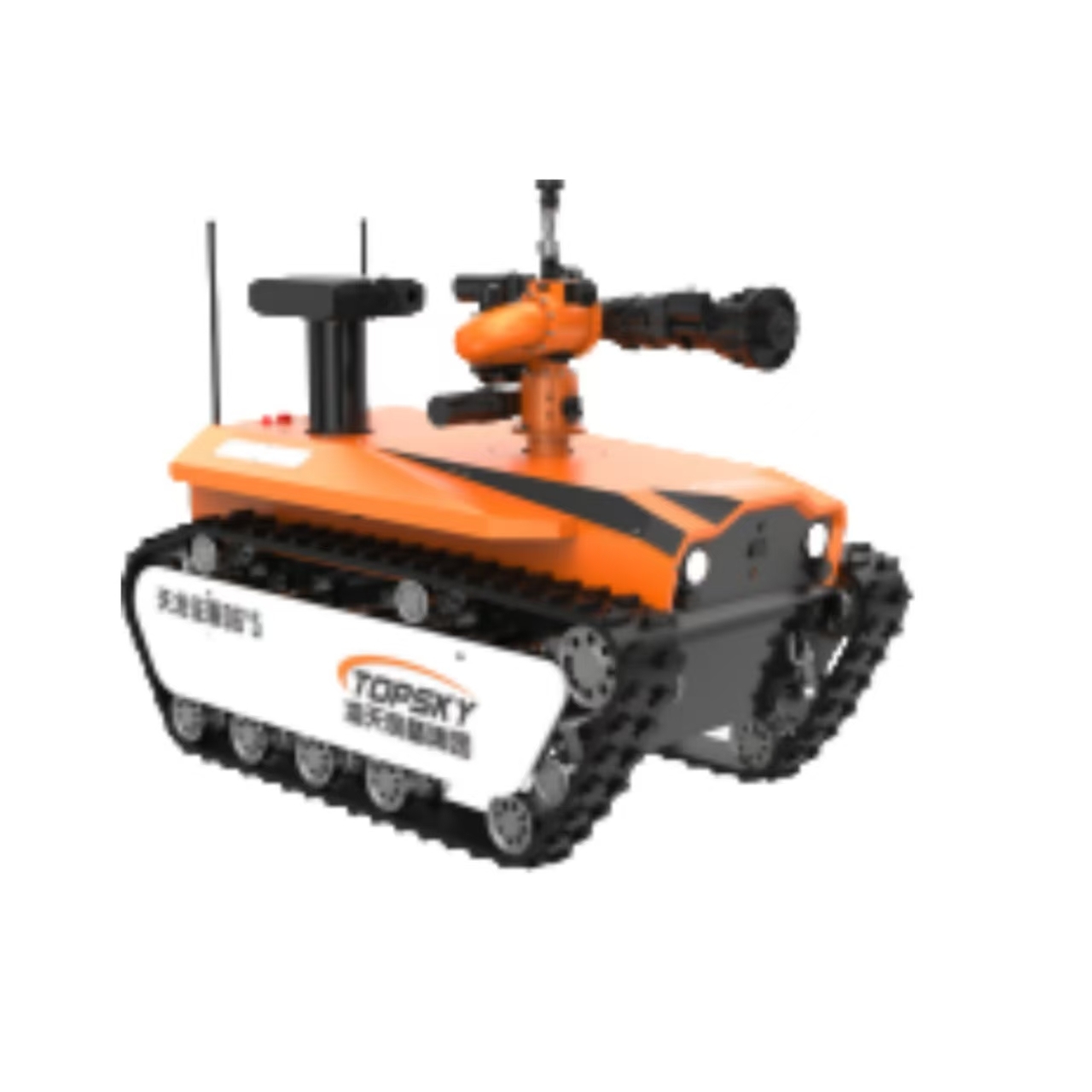

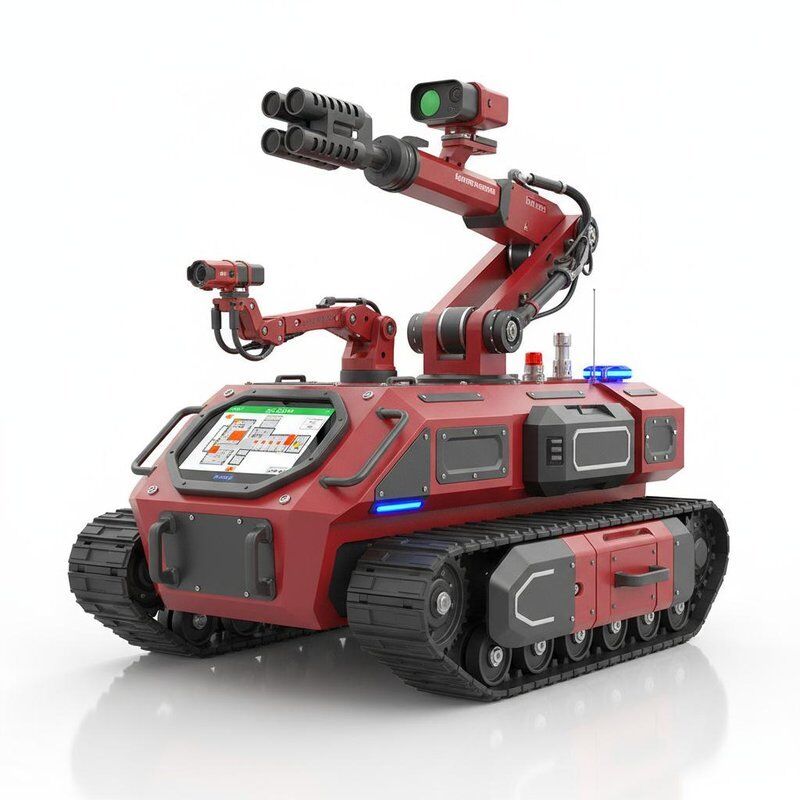

Explosion-proof Fire Fighting, Extinguishing and Reconnaissance Robot
Product Overview

The crawler explosion-proof robot chassis utilizes lithium battery power supply and wireless remote control for distant operation. Designed for various carrying configurations with in-situ rotation capability for enhanced operational flexibility.

Application Scenarios: Suitable for large-scale petrochemical enterprises, tunnels, subways, and other environments with potential hazards including oil/gas leaks, toxic gas exposure, explosions, and structural collapses.

Key Applications
  • Fire rescue operations in large petroleum and chemical facilities
  • Rescue and fire extinguishing in tunnels, subways, and other collapse-prone locations
  • Emergency response in environments with combustible gas/liquid leaks and explosion risks
  • Rescue operations in thick smoke and toxic/hazardous gas conditions
  • Close-range fire extinguishing where human proximity poses casualty risks
Technical Specifications
Feature Specification
Explosion-proof Rating ≥Ex db eb ib C T6 Gb
Protection Grade (Upper-mounted Unit) ≥IP67
Protection Grade (Main Body) ≥IP68
Travel Speed ≥1.98 m/s (straight-line)
Traction Force ≥5.82 kN
Overall Weight ≤688 kg
Core Functions
  • Fire fighting and extinguishing capabilities
  • Audio and video reconnaissance systems
  • Toxic and hazardous gas detection and monitoring
  • Environmental assessment and data collection
