 Product Overview

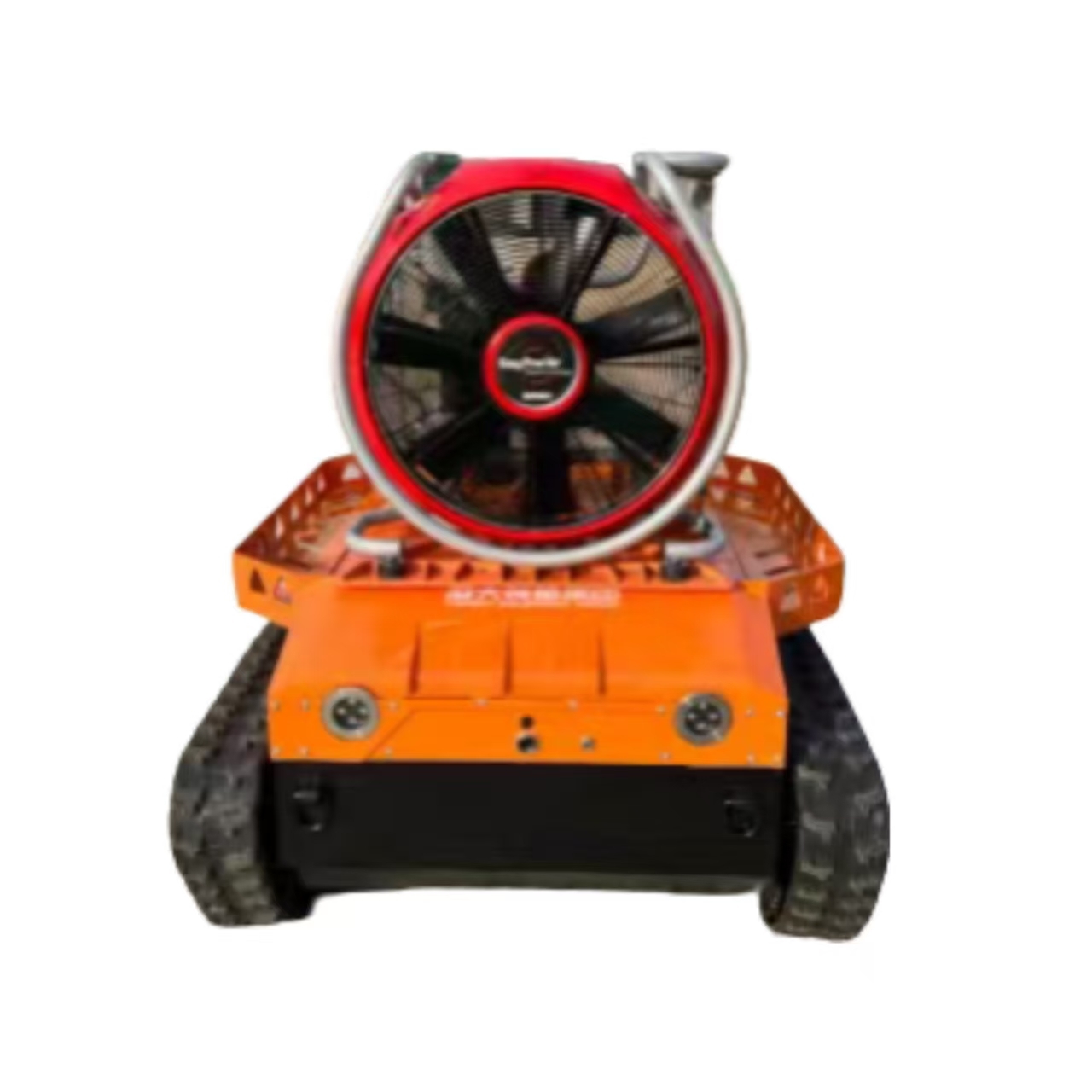

The RXR-YC25000BD explosion-proof firefighting and smoke exhaust reconnaissance robot is a type of special robot that uses lithium battery power as its power source. It consists of the robot body, smoke exhaust fan, infrared camera, and handheld remote control terminal, and uses wireless remote control to remotely control the firefighting robot. It is of great significance to improve rescue safety by utilizing the functions of smoke exhaust, dust reduction, heat radiation barrier, smoke and exhaust gas washing in firefighting and rescue operations. By providing external pressure water source to drive the motor to rotate at high speed, the fan is driven to disperse the smoke in the fire scene, helping firefighters to quickly carry out rescue operations; A water mist nozzle is arranged behind the fan blades to spray and further atomize the blades. The water quickly vaporizes and absorbs a large amount of heat, which can effectively control and reduce the disaster situation. This product has smoke exhaust, audio and video surveillance, toxic and harmful gas surveillance, and disaster area environmental surveillance functions;

Product Features

1. Wide range of smoke exhaust applications

  Can be used for smoke exhaust, air supply, spraying water mist to extinguish smoke, cooling, dust reduction,circulating water drive to save water resources and other functions

2.There are many types of toxic and harmful gas detection

3.Strong drag and drop ability

Technical parameters

1. Name: Explosion-proof firefighting smoke exhaust and scouting robot

2. Model: RXR-YC25000BD

3. Basic function: Smoke exhaust, audio and video surveillance, toxic and harmful gas surveillance, and disaster area environmental surveillance functions;

4. Implement the fire industry standard: "GA 892.1-2010 Fire Robots Part 1 General Technical Conditions"

5. Implement explosion-proof standards: GB3836.1 2010 "Explosive Atmosphere Part 1: Equipment - General Requirements", in compliance with GB3836 1-2010 "Explosive Atmosphere Part 2: Equipment Protected by Flameproof Enclosures", CB3836 2010 National Standard for Explosive Environments Part 4: Equipment with Intrinsic Safety Protection

6. ★ Explosion proof type: Whole machine: Exd [ib] Ⅱ B T4 Gb, lithium battery power supply device: Ex d IIC T6 Gb

7. Power: Electric, ternary lithium battery

8. Dimensions: Length 1800mm x Width 1360mm x Height 1560mm

9. Turning diameter: 2130mm

10. Weight: ≤ 890kg

11. ★ Traction force: 6500N

12. Dragging distance: ≥ 120m

13. Walking speed: ≥2.0m/s, remote control continuously variable transmission

14. Straight deviation:≤3%

15. ★ Climbing ability: 78.1% (38 °)

16. ★ Obstacle crossing height: ≥ 250mm

17. Ground clearance: 194mm

18. Roll stability angle: ≥ 45 °

19. Continuous walking time: ≥ 2hours

20. Battery life: ≥ 16h

21. ★ Remote control distance: 1100m

22. ★ Video transmission distance: 1100m

 Product certificate

1. Explosion-proof firefighting smoke exhaust and scouting robot x 1 unit

2. Handheld remote control terminal x 1 unit

3. Vehicle charger x 1 set

4. Remote control charger x 1 set

5. Control antenna x 3pieces

6. Vehicle body antenna x 2 pieces
