Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image
Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image
اکنون تماس بگیرید

Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image

محل منبع: چین نام تجاری: topsky

اطلاعات تکمیلی
عرض: 60-140 سانتی متر ویژگی: غیر تماسی
نیروی کشش: 5240n Communicaiton برای چاپگر: بلوتوث
هدف: جلوگیری و پاسخگویی به حملات تروریستی مدت زمان استنارد: 320 دقیقه
منبع تغذیه: باتری های قابل شارژ یا منبع تغذیه خارجی وضوح: ＞ 20 (برای TNT)
وزن کل: ２１ｋｇ سرعت: 2 ثانیه
وزن کنید: 15.5 کیلوگرم مواد: فولاد با عیار بالا، کولار، مواد کامپوزیت
فاصله کنترل سیم: 1000 میلیون سازنده: پیمانکاران تخصصی دفاعی مختلف
زمان پاسخگویی: کمتر از 1s
برجسته کردن:

Intrinsically Safe Infrared Thermal Imager,Non-contact Temperature Measurement Thermal Imaging Device,High-definition Pseudo-color Image Mine-used Thermal Imager

,

Non-contact Temperature Measurement Thermal Imaging Device

,

High-definition Pseudo-color Image Mine-used Thermal Imager

توضیحات محصول

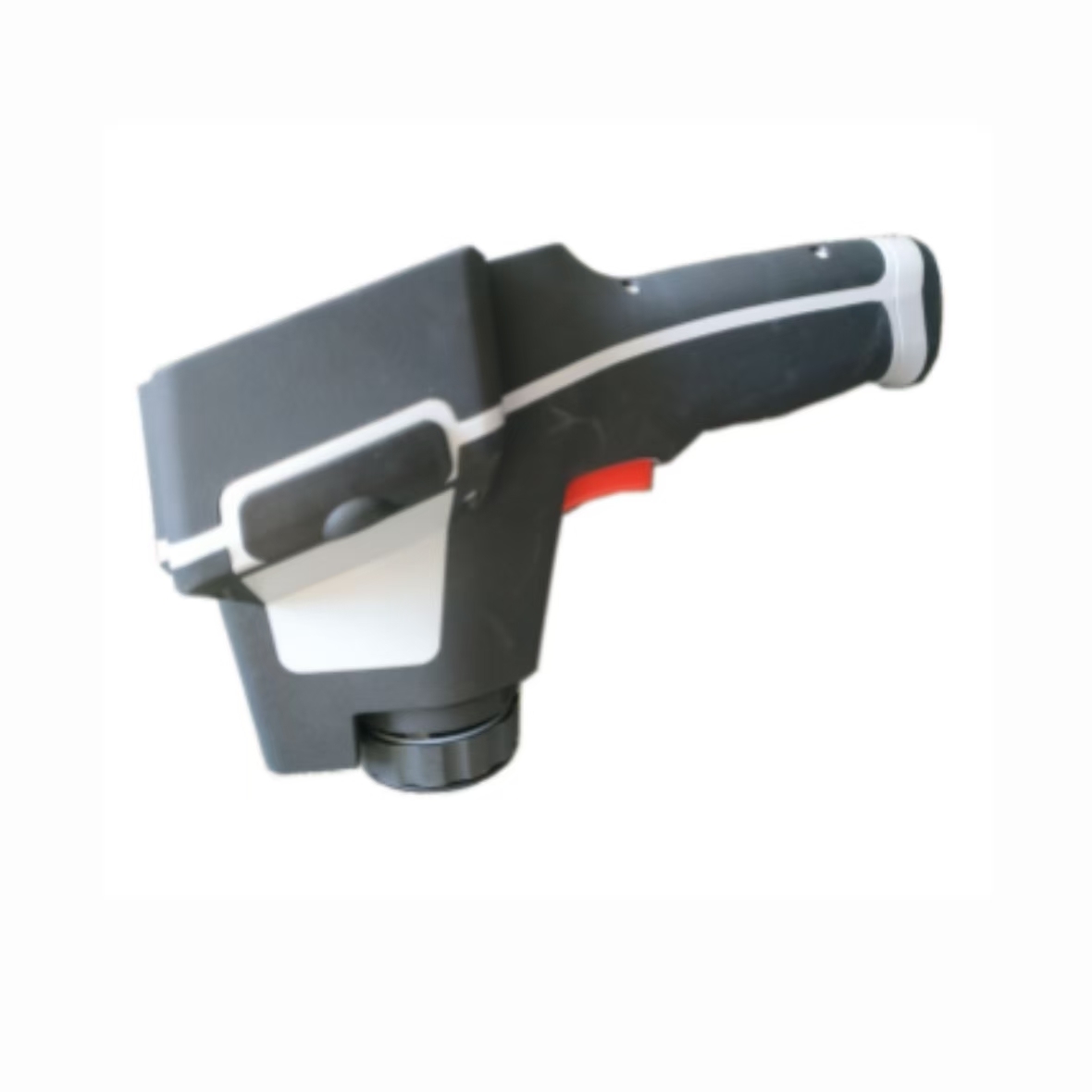

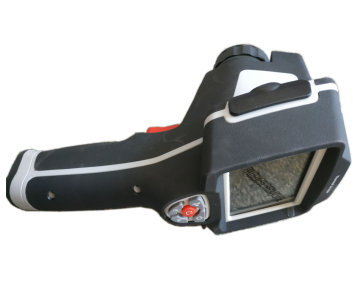

Mine-Used Intrinsically Safe Infrared Thermal Imager
The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. This advanced thermal imaging device utilizes a non-cooled focal plane infrared detector to deliver high-definition, high-sensitivity pseudo-color thermal imaging with multi-point temperature measurement capabilities.
Product Overview
This thermal imager captures and stores infrared thermal spectrum data in images, videos, and audio recordings on a Micro SD card for comprehensive computer analysis and statistical evaluation. Suitable for all personnel including technicians, operators, and management teams, it enables reliable thermal detection in explosive hazard environments.
Applications include detecting high-temperature zones, real-time temperature differential imaging, identifying coal seam spontaneous combustion areas in ventilation workspaces, and assisting rescue teams in locating trapped personnel under low-visibility conditions.
Key Features
  • Digital display with 0.1°C resolution and positive/negative value indication
  • Dual operation modes: photo capture and temperature measurement with real-time video recording
  • Comprehensive data management: storage, retrieval, deletion, and playback functions
  • Advanced temperature measurement: maximum, minimum, and average temperatures for points, lines, and surfaces
  • Multiple pseudo-color and color scale display options
  • Programmable alarm system: high-temperature, low-temperature, and preset temperature alarms
  • Manual and automatic focusing capabilities
  • Background light control with brightness adjustment
  • °C/°F conversion with trigger lock functionality
  • User-friendly operation keyboard with Chinese menu interface
Technical Specifications
Temperature Measurement Repeatability ≤ 0.5°C
Alarm System Accuracy ±1.0°C deviation from set value with audible alarm activation
Battery Module Model PL123450, rechargeable, dual 1600mAh manganese oxide lithium batteries
Maximum Open-Circuit Voltage 8.4V DC
Maximum Short-Circuit Current 1.6A
Explosion-Proof Certification Mine intrinsically safe type, Ex ibⅠMb
Housing Material ABS + silicone construction
Weight 1.0kg
Dimensions 283 × 103 × 160mm
