خانه محصولاتتجهیزات ضد تروریسمPortable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

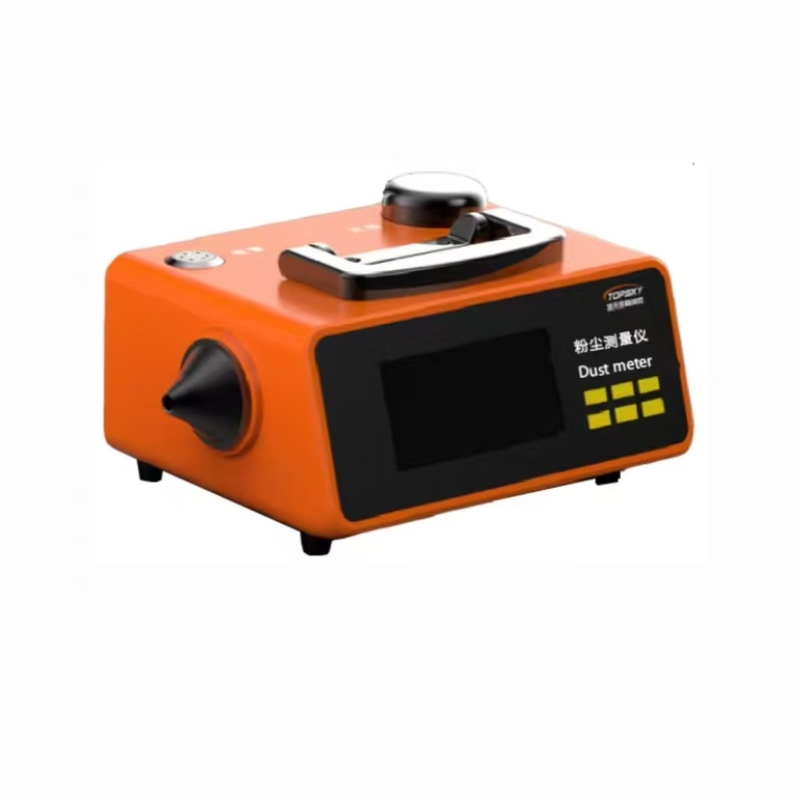

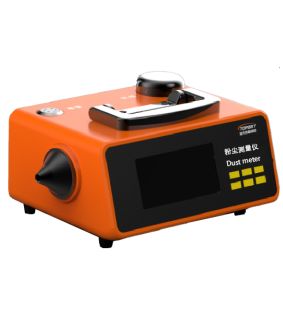

Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range
اکنون تماس بگیرید

Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

محل منبع: چین نام تجاری: topsky

اطلاعات تکمیلی
طول موج: 447nm ؛ 415nm گارانتی: 5 سال
اندازه پیکسل: : تقریباً 160 میکرومتر. سر و صدا: کمتر از 30 دسی بل
محدوده فوکوس: 0.3 متر~ تنظیم عمودی: 0-30 سانتی متر
اندازه از راه دور: 278*184*43mm اندازه دستگاه شنوایی: 210*100*100mm
محافظ گردن: 850m/s مدل: RXR-M80D
نوع زنگ هشدار: صدای سبک و لرزش اندازه ساحل: 73*16*50cm
بزرگ شدن: 16 بار حداکثر سرعت خطی: ≥1.52m/s ، سرعت کنترل از راه دور
نوع محصول: تجهیزات
برجسته کردن:

4G Transmission Dust Measurement Instrument,0.001mg/m3 Resolution Dust Concentration Meter,0.001mg/m3 to 50mg/m3 Range Dust Monitor

,

0.001mg/m3 Resolution Dust Concentration Meter

,

0.001mg/m3 to 50mg/m3 Range Dust Monitor

توضیحات محصول

Dust Measurement Instrument
Product Overview
The CCZ500 dust measurement instrument is a portable, easy-to-use device that provides direct readings of dust concentration. Utilizing advanced light scattering technology with an infrared laser and imported photomultiplier tubes, it converts scattered light intensity into electrical signals to calculate mass concentration. This instrument features:
  • Fast, accurate measurements with high sensitivity
  • Stable performance with strong load capacity
  • Low susceptibility to optical path dust accumulation
  • Configurable alarm thresholds with audible/visual alerts
  • 4G data transmission for real-time monitoring
  • Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards
Key Features
  • ★ Lightweight: Compact and portable design for easy measurement
  • ★ Efficient: Direct reading with one-button operation and 1-minute results
  • ★ High Precision: Resolution of 0.001mg/m³
  • ★ Automatic Alarm: Customizable threshold alerts
  • ★ Data Processing: Scheduled sampling with TWA calculation
  • ★ Networking: 4G transmission for real-time data visualization
  • ★ Maintenance-free: No cleaning required for sensor module
  • ★ Integrated: Durable, reliable design with attractive appearance
Technical Specifications
Dust Measurement Instrument
Measurement Range ★ 0.001mg/m³ ~ 50mg/m³ (accuracy 0.001mg/m³)
★ 0.01mg/m³ ~ 150mg/m³ (accuracy 0.01mg/m³)
Relative Error ★ ≤ 10%
Measurement Time 1 minute (standard measurement time)
Alarm Function ★ Built-in with customizable concentration settings
Data Storage ★ Up to 9999 data sets
Calculations ★ Automatic time-weighted average (TWA)
Network Function ★ 4G transmission of dust concentration, temperature, humidity, and GPS data
Display 4.3-inch LCD screen
Working Time ≥ 6 hours
