توضیحات محصول

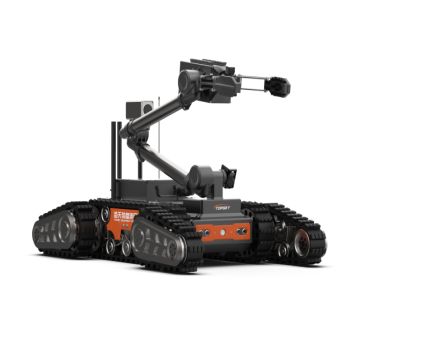

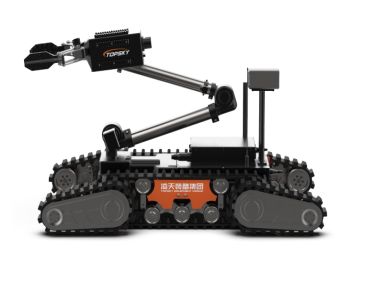

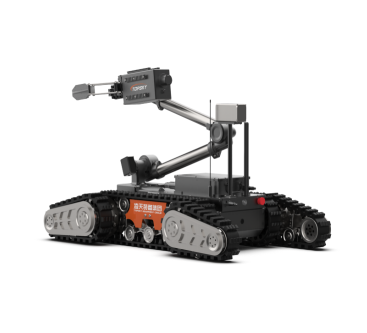

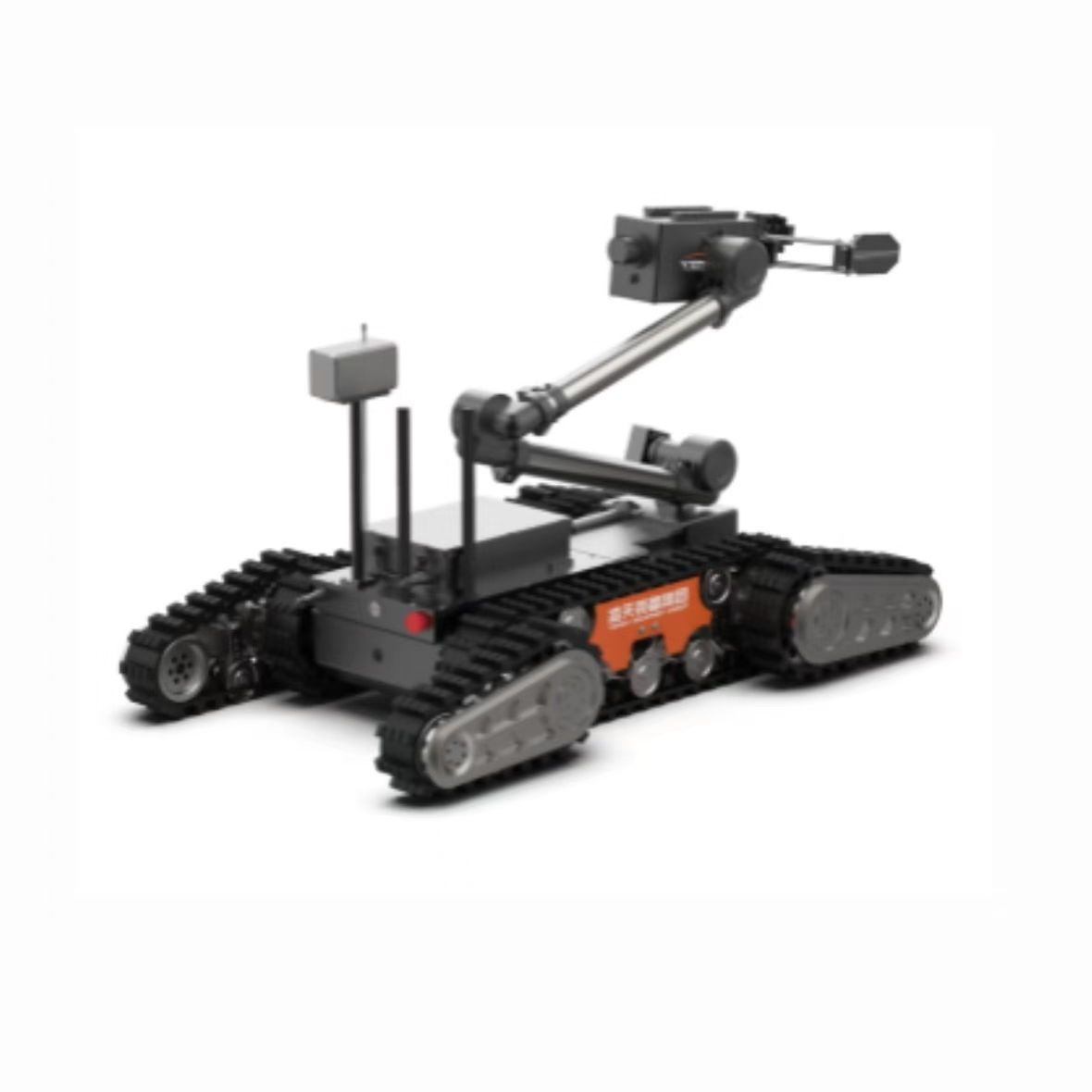

Explosive ordnance disposal robots are specialized equipment designed for handling explosive materials and conducting reconnaissance in hazardous or inaccessible terrain. This medium-sized model features a 6-degree-of-freedom robotic arm capable of lifting up to 55KG and includes an integrated explosive destruction device for on-site detonation. The track-and-swing-arm chassis provides exceptional terrain adaptability, while the wired control option ensures reliable operation in environments with network interference.
| Primary Functions | Bomb disposal, video reconnaissance |
| Compliance Standard | GAT 1776-2021 Police Robots Systems |
| Protection Level | IP67 |
| Power System | Electric, ternary lithium battery |
| Dimensions | ≤ 973mm (L) × 700mm (W) × 621mm (H) |
| Weight | ≤ 91.5kg |
| Maximum Speed | ≥ 1.9m/s with stepless speed control |
| Operating Time | ≥ 3 hours continuous operation |
| Control Range | 800m wireless (open area) |
| Climbing Ability | ≥ 35° slope |
| Stair Climbing | ≥ 30° incline |
| Trench Spanning | ≥ 500mm width |
| Obstacle Clearance | ≥ 320mm height |
| Water Crossing | ≥ 185mm depth |
| Vehicle Cameras | 2× 960P HD |
| Arm Cameras | 3× 960P HD |
| Zoom Camera | 1× 1080P with 20× optical zoom |
| Degrees of Freedom | 6 |
| Claw Opening | 281mm |
| Claw Rotation | 360° continuous |
| Wrist Movement | 270° forward/backward |
| Maximum Reach | ≥1385mm horizontal, ≥2020mm vertical |
| Payload Capacity | 25KG rated, 55KG maximum |
