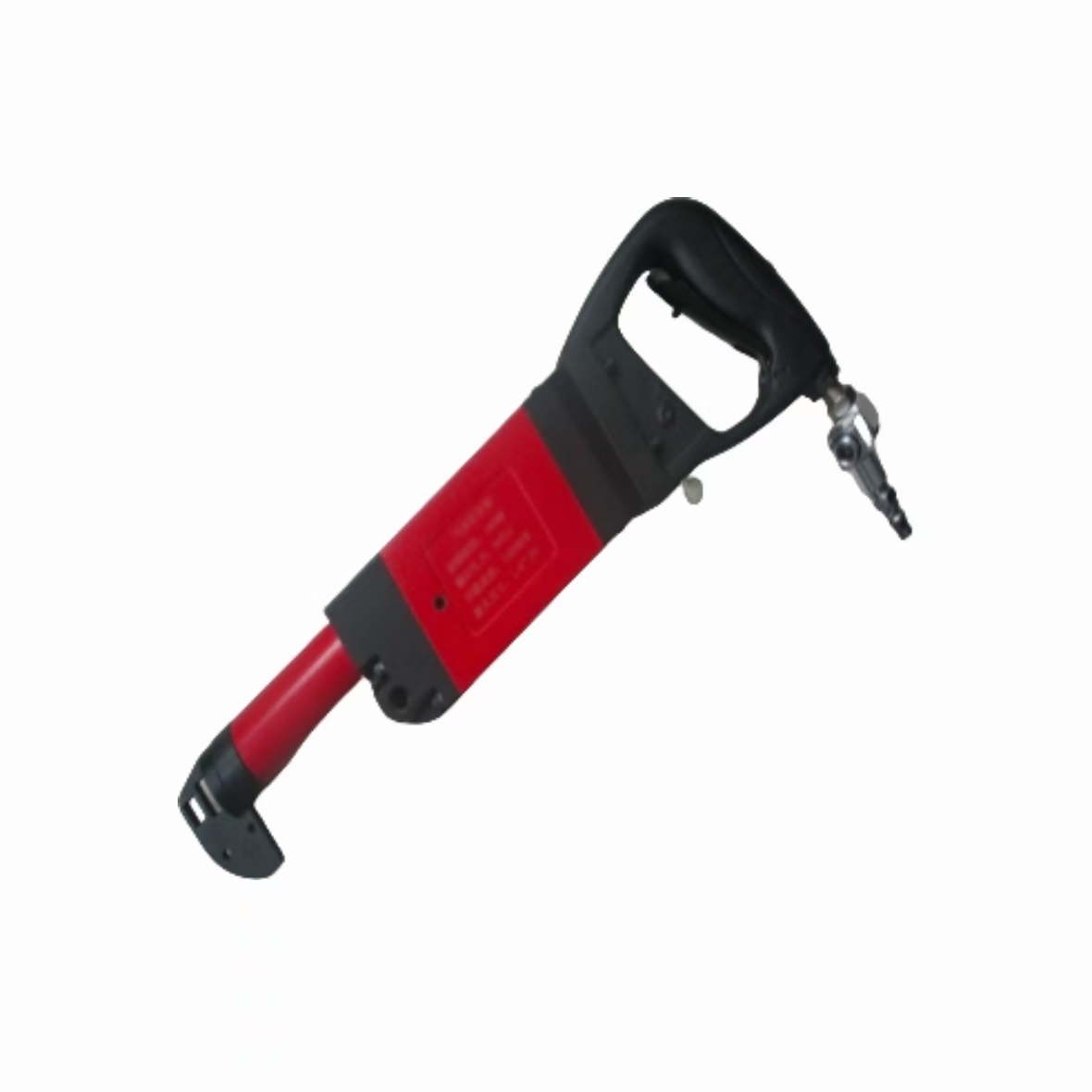

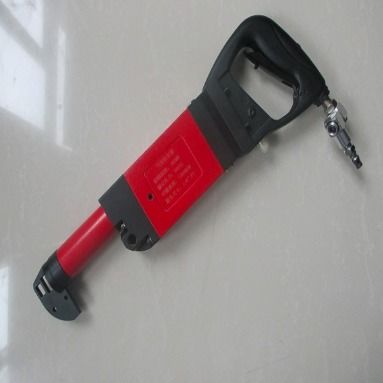

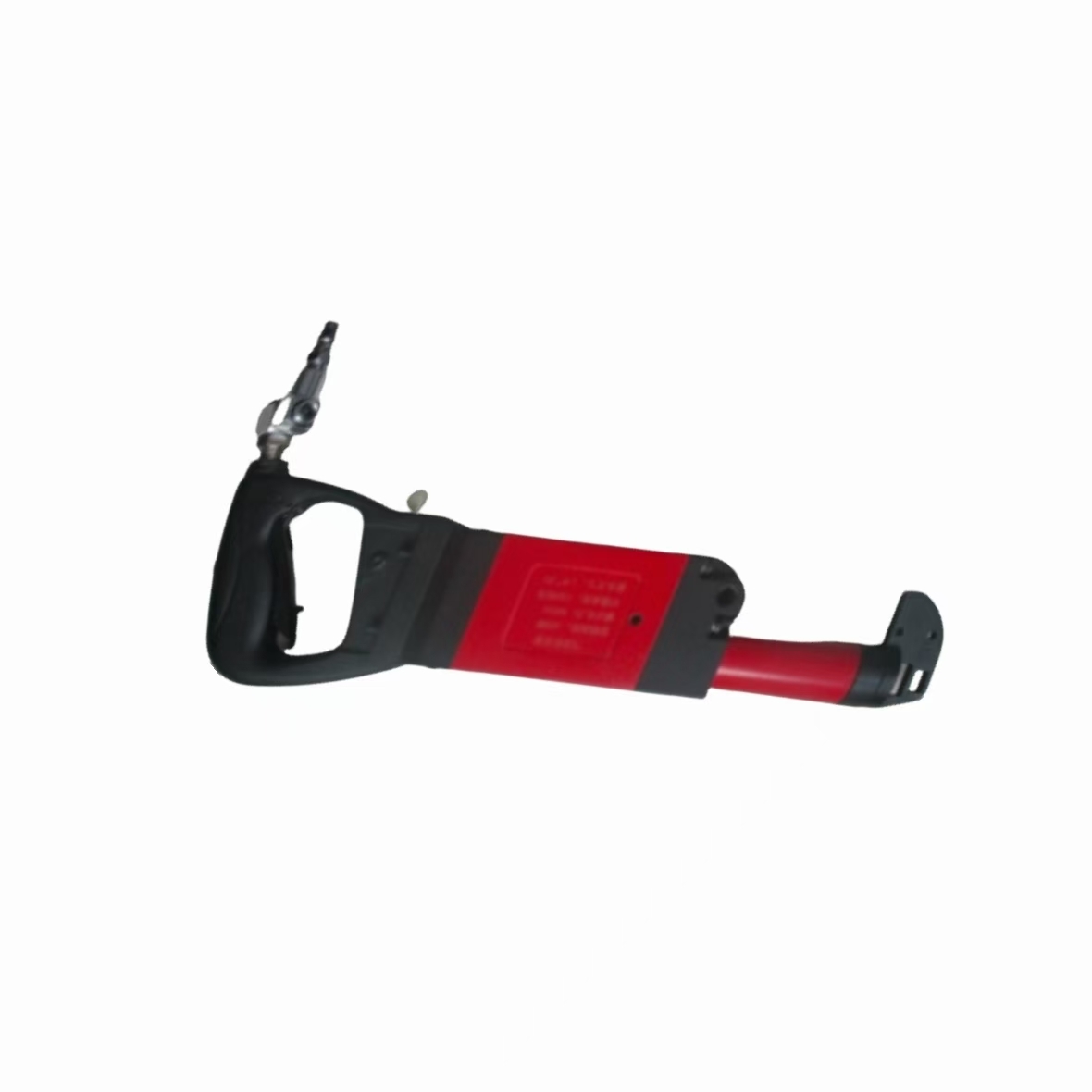

Pneumatic reciprocating saw

توضیحات محصول

1,Overview

The JQW-6/45 pneumatic reciprocating saw is a new type of cutting tool developed by our company after years of research and development.

The pneumatic reciprocating saw is composed of the main unit, a dual water cut-off protection device, a hard metal saw blade, a purifier, and a water spray cooling nozzle. The hydraulic hose assembly connects the air source to the main unit. The purified air source provides the pressure to drive the hard metal saw blade to rotate at high speed, performing the cutting operation. The water spray cooling nozzle and the dual water cut-off protection device play the roles of cooling and dust reduction, ensuring the normal operation of the machine.
Suitable for hazardous working environments, widely used for cutting large-diameter drainage pipes, steel pipes, and other metals.
Using compressed air as the power source can be achieved through an air compressor, a carbon fiber gas cylinder, or a pressure air pipeline.

2,Features
Large-diameter rapid and effective cutting
The cutting speed is fast, with the reciprocating stroke reaching 1200 strokes per minute (BPM)
Ideal tools for explosion-proof areas
Can operate in environments with higher temperatures
The gas source is readily available;
Compared with the hydraulic saw, it can be operated from a distance, with the maximum distance reaching up to 200 meters. The hydraulic oil pipe connected to the hydraulic chain saw cannot exceed 20 meters.
Because it is driven by low pressure (the air source pressure is less than 7 kilograms), there are no problems such as oil leakage compared to hydraulic saws.
Lightweight and portable, it can be operated by a single person.
3,Functions
Cutting stroke: 45mm
Stroke rate per minute: 1,200 BPM
Tool length: 400mm
Internal diameter of the trachea: 3/8"
Machine weight (excluding hydraulic hose assembly): ≤ 6 kg
Power source: Compressed air
Rated pressure: ≤ 0.7 MPa
Rinse water pressure: 0.2 - 0.56 MPa
Noise: ≤ 120 dB(A)
